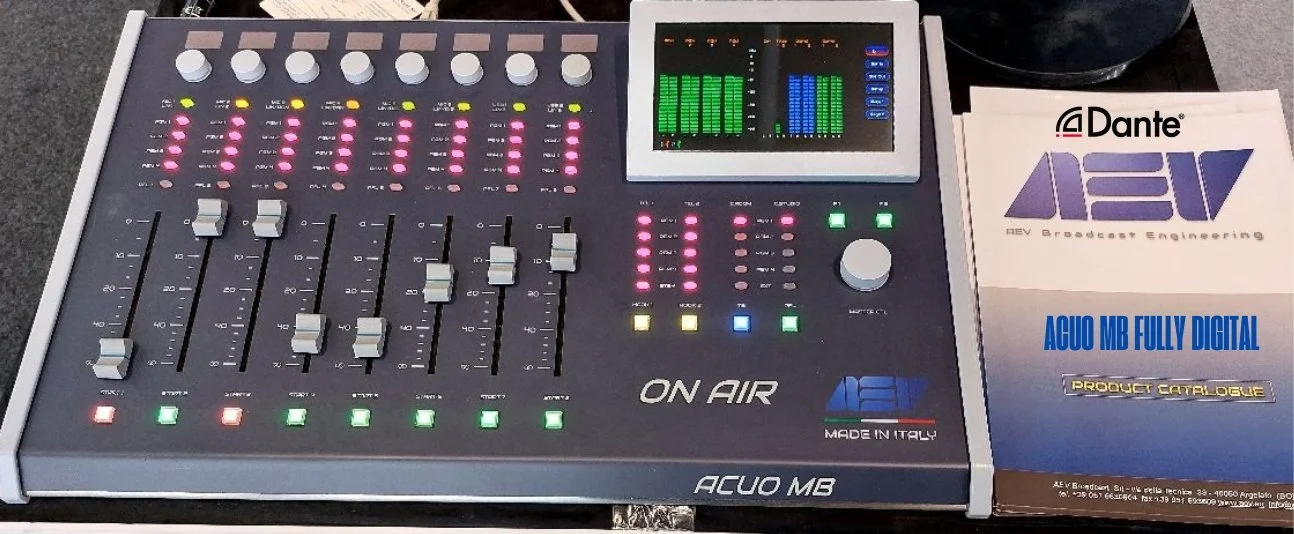

ACUO MB fully digital broadcast console
ACUO MB fully digital broadcast console
The ACUO MB is AEV fully digital broadcast console, designed to offer modern flexibility without losing the straightforward handling engineers expect. It delivers clean mic preamps, balanced I/O across the board, dual AES/EBU paths, USB audio, Bluetooth on the second hybrid and two built-in telephone hybrids for smooth call management. Its 8 fader surface can expand to 12 or 16 channels, and the whole system is controlled through a bright 7” touchscreen that handles routing, metering and setup with ease. With optional Dante™/AES67 integration, quiet passive cooling, solid 100mm ALPS faders and precise 4 band processing on every mic input, the ACUO MB fits naturally into any radio studio that needs reliability, modern connectivity and room to grow.
ACUO MB - Features:
o 6 balanced mono Microphone input with phantom
power with XLR connectors
o 8 balanced stereo lines with RJ-45 connectors
o 2 Digital AES/EBU stereo inputs
o 2 internal USB Audio Boards
o 2 Telephone opto-coupled hybrid internally
integrated with TELCO function
o All Balanced inputs and outputs
o Digital AES/EBU input & output
o Digital setup and setting Mixer
o A/B input control 2 direct routing buttons on each
channel.
o Led meter display for External input swichtable
with PFL
o 100 mm ALPS Sliders
o STAR/STOP key for all channels
o Digital Four band tone control all inputs channels
o Two Telephone/Telco opto- coupled hybrid
internally integrated with TEL SET assignable,
o Bluethooth channel on TEL/TELCO 2
o Headphone output monitoring
o Control Room and Studio functions with monitor
mode selector
o Control Room out with mute logic
o 2 internal USB Audio Board for extra versatility
connection
o Output opto-coupled ON AIR command
o GPIO - Totally shielded bus
o Digital TFT display 7” for monitoring & setup
functions,
o Four Digital stereo led meters showing the Master
stereo levels: PGM1, PGM2, PGM3 PGM4
o automatically CUE switch for Pre-Listening function
for each channel, including the Tel/Telco channels
o Digital Timer UP/DOWN
o Remote Fader / Talckback Unit to fully talkback
function between Studio Room and Control Room
o Remote Fader Talck back Studio Unit easy
connectivity with ethernet cable and RJ45
connectors.
o Internal LCD display 7” touchscreen
o External HDMI output for external display
o Configurable control monitoring, paging, CUE,
headphones and vu-meters for all system signals.
o Silent ventilation of all elements through natural
convection.
o Talkback function assignable to any microphone. 4
pre-configured talkback destinations plus a choice
of further talkback destinations via soft-keys.
o 2 integrated headphone outputs.
o 4 precision stereo vu-meters.
o Test tone generator.
o External system time clock synch, timer and
stopwatch.
o Optional redundant power supply.
o Cough mute, ON-AIR signalling for studio and
control, fader start, remote PFL, talkback…
o Memory banks – storage of all signal settings: one
“default” and up to xx user-defined configurations.
o Auto start with the last settings made.
o Input signals assignable to control channels.
o Pre-/Post-Fader routing option.
o Flexible configuration of N-1 or clean-feed outputs.
o Internal sampling frequency 48kHz at 24bits
o Gain control (digital and analogue input and output
signals at line level): ± 12 dB, including hidden
signals.
o Audio processing capability for all microphone
o Audio effects available: 4-band parametric EQ,
high-pass and low-pass filters, compressor/limiter
and noise gate.
o Main surface with 8 faders, LCD display, all-in-one
unit
o Expansion inputs surface: 4 faders
